Sand Dryer

Rotary Sand Dryer Machine is for drying minerial material such as river sand, silica sand, frac sand, garnet sand, slag,etc After being dried by Sand Dryer System, the sand moisture content can be less than 3% Features: High Sand Drying Capacity, Less Energy Consumption, Easy Maintenance and Operation, Compact Structure & Less Land Occuptation, etc

Technical Parameters

Introduction of Sand Dryer Machine :

◆ Widely used for drying all kinds of sand such as river sand, yellow sand, silica sand, quartz sand, pomegranate sand, etc.

rotary sand dryer for drying wet sand and get rid of the water

◆ Mainly consists of rotary drum, carrier roller, lifting boards, large ring, large gear, inlet cover, outlet cover, inner lifting plates, motor & reducer, large steel support frame, etc.

◆ Sand dryer also is well known as silica sand dryer, rotary sand drying machine, frac sand drier, quartz sand dryers, etc, and it is optimized on the base of rotary drum dryer.

◆ Mainly there are 2 types of rotary sand dryer machine:  Single drum sand dryer and triple pass sand dryer.

Features of Single drum sand dryer machine:

single drum sand dryerInner structure of rotary sand dryer machine

◆ Simple structure, easy maintenance.

◆ Easy operation.

◆ Single pass: in the drying process, the sand only pass through the sand dryer cylinder on time, thus its heat efficiency is some low.

◆ Stable work performance, durable.

Features of Triple Pass Rotary Sand Dryer :

triple pass sand dryer machinetriple pass sand drying machine,

◆ 7 Inner chambers & Triple Pass Design:

 Longer drying time and efficiency;

◆ High Temperature & Quick Drying Method:

Inner temperature is 400℃-500℃, discharging temperature <= 80 ℃;

◆ More Durable:

Made of wear resistant manganese plate, 3 to 4 times more hardwearing than ordinary steel plate ;

◆ Less Fuel Consumption:

1/3 of the traditional drum dryer's fuel consumption,  electricity power saving 40%, standard fuel consumption per ton dried sand < 1

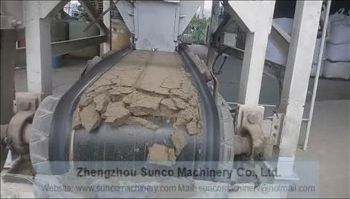

 Wet Sand Input                                                              Dried Sand Output

wet sand before drying Dry sand out of sand dryer

Sand Dryer Working Principle and Workflow:

It is to use high temperature air to heat and dry the wet sand strongly, continuously and quickly for bulk production.

Sand dryer, drying sand machine, rotary drum sand dryer, silica sand dryer, quartz sand drier, sand drying line,

◆ Belt Conveyor feeds the wet sand into the hopper which is on the top of sand dryer.

◆ Burner & Hot air furnace supply the hot air for the sand dryer.

◆ Inside the sand dryer's cylinder, there are many flights, and these flights mix the wet sand and hot air sufficiently. The humidity in the wet sand is heated and evaporated into water vapour.

◆ At the end of the sand drying plant, there is one high pressure draft fan. Under the function of draft fan, the water vapour goes out of sand dryer in time.

◆ During the sand drying process, there is some dust mixed with the water vapour. In the cyclone separator, the dust is separated from the water vapour, and falls down.

◆ The dried sand goes out of the sand dryer machine from the outlet as product.

◆ Finally belt conveyor send the dry sand into silo or trucks.

Fuel Choice for Sand Dryer Machine:

◆ Biomass Fuel such as wood pellets, waste wood;

◆ CoaL;

◆ Diesel;

◆ Natural gas;

The users can choose the most economical fuel as actual need.

Specification of Rotary Sand Drying Machine:


Input Capacity (T/H)

Input M.C.(%)

Output M.C.(%)

Dryer Motor (KW)

Heat Consumption (Kcal/hour)






























Sunco Machinery can design and supply Sand Drying Machine, the needed information is as follows :

◆ Initial moisture content (%)of wet sand ?

◆ Final output moisture content (%) of dry sand needed ?

◆ Input Capacity (ton per hour ) needed ?

◆ Prefered fuel such as coal, waste wood, diesel, or natural gas, etc ?

◆ Other special requirements if have ?

rotary sand drying line with vibrating screen
